Designing a Cage That Passes Tech Inspection

A cage that fails tech inspection is scrap, plus however many weekends went into it. There's no appeals process and no partial credit.

Most of the failures I've heard about weren't bad fabrication. They were decisions made at the design stage by someone who read the tube sizes in the rulebook and skipped everything else in the section.

Talk to a scrutineer before you cut

This is the single highest-value thing on the page, so it goes first.

Find the tech inspector for your series and ask them to look at your design. Most will, most are pleased to be asked, and the conversation takes twenty minutes. They have seen the specific failure you're about to commit, probably several times.

They would far rather have that conversation than the one at the event where they have to tell you no. Nobody enjoys that version.

What gets checked that isn't tube size

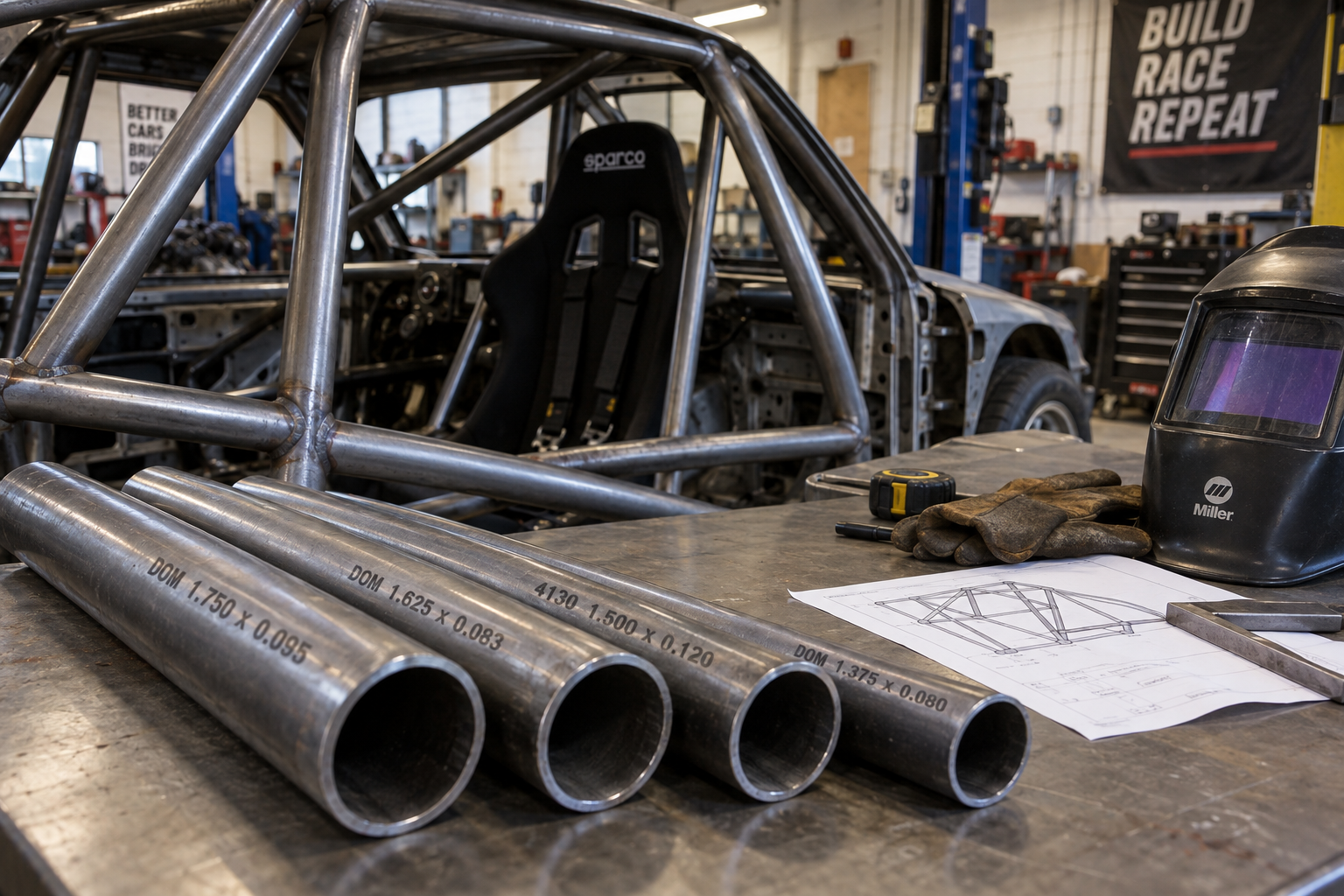

Tube diameter and wall is the part everyone reads. The rest of the section is where cages fail.

Clearances to the occupant. Helmet to any tube, helmet to the main hoop, and room for arms relative to the door bars. These get measured with the driver sitting in the car in their actual helmet, not estimated. Design to them from the start, because fixing a helmet clearance means moving the main hoop, which means rebuilding most of the cage.

Mounting plate dimensions. Minimum area and minimum thickness, usually both. And where they land — plates have to attach to structure capable of carrying load, not to unsupported floor pan, however convenient the position looked in the model.

Mandatory members. Most rulebooks list members that must be present regardless of your structural reasoning. Your clever alternative that simulates better is not a defence. If the book says there's a diagonal in the main hoop plane, there's a diagonal.

Welding. Some series require every joint to be welded around its full circumference. Which means every joint has to be reachable around its full circumference — a design constraint rather than a fabrication one. If a joint can only be welded on 300° of its circumference because a neighbouring tube is in the way, you designed a failure in.

Inspection holes. Many rulebooks require them so wall thickness can be verified. Put them somewhere a person can reach with a caliper, not inside a closed section.

Padding. Required on tubes within a specified distance of the occupant, and it usually has to meet a standard rather than being pipe insulation. Padding takes up space, so it belongs in the model as a clearance allowance.

No bends where bends aren't allowed. Some rules prohibit bends in certain members, or limit how many. Others require specific members to be single continuous tubes with no joins.

The wall thickness trap

Worth its own heading because it catches careful people.

Wall gets measured at the thinnest point, and on a bent member that's the outside of the bend, where material stretched during bending. Mill tolerance can push the same way.

Most rulebooks allow a permitted undersize — SCCA, for instance, allows 0.010" below nominal. That sounds generous until you do the arithmetic: a 3D bend in 0.120" wall thins something like 8–10%, which is around 0.011". So a member ordered exactly at minimum, bent correctly, from certified material, can land just outside the allowance. The paperwork says you bought the right thing and the gauge says the tube is under spec, and the gauge is the one holding the clipboard.

Buy above minimum wall. How much thinning to expect depends on your radius and your D/t ratio, but on a tight bend in thin wall it's not a rounding error.

Paperwork is part of the build

Turning up with a well-made cage and no documentation is a bad day.

What to have ready:

• Material certs with heat numbers, and a record of which heat became which members.
• A drawing or printout of the cage with dimensions. Scrutineers reading your intent from the structure itself is slower and more adversarial than reading it from a sheet.
• Photographs taken during the build, especially of joints that are no longer visible. If a weld is now hidden behind a panel, a photo of it before the panel went on is the only evidence it exists.
• SFI or series certification paperwork if your class requires it, including recertification dates.

That photo habit is worth emphasising. A cage gets progressively enclosed as you build it, and the welds that end up hidden are the ones an inspector most wants to see. Take the picture at the time. You cannot take it later.

Where design software helps, and where it doesn't

A model will tell you dimensions, clearances, developed lengths and whether your helmet clearance works at the seat position you specified. Check your rulebook's clearance minimums against the model rather than against the car — it's much easier to move a tube on screen.

What it won't do is tell you whether the design is compliant. No design tool knows your series' current rulebook, and any that claimed to would be out of date by next season. Compliance is a reading exercise and it's yours.

Use the model to answer "does this fit," and the rulebook to answer "is this allowed." Then have a scrutineer check both before the first cut.
